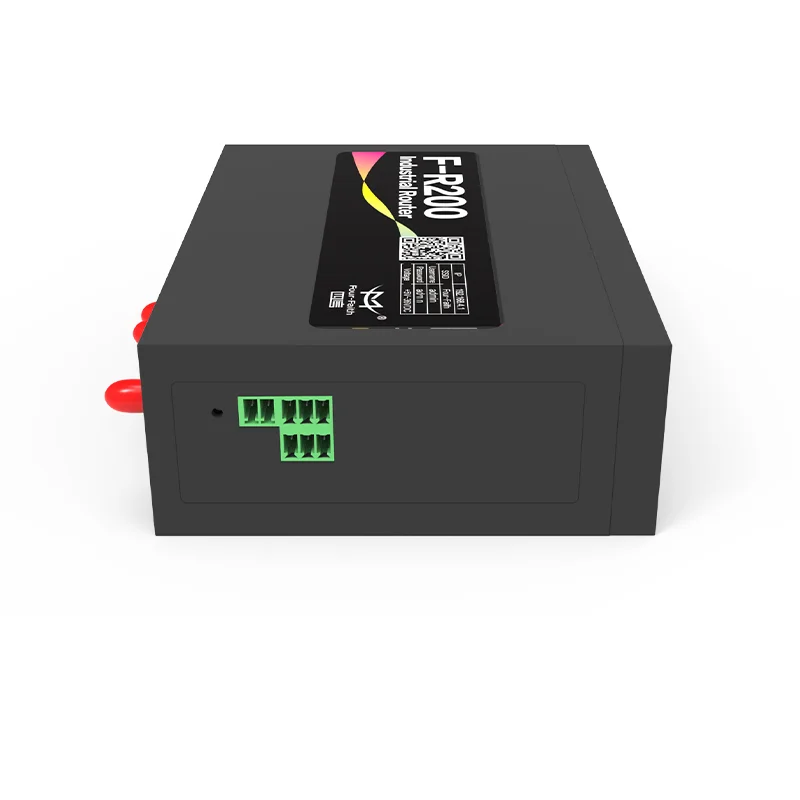

F-R200
- Cellular Wireless Router
- Certification: CE, FCC
- Outer shell: metal, IP30 protection level
- System: watchdog design, complete mechanisms, stable operation
- Abundant ports: RS232, RS485, RS422, Ethernet LAN&WAN, Wi-Fi
- CPU: industrial-grade 32-bit processor & wireless module
- Applied scenarios: M2M fields of the IoT industry, smart factories, etc.
- dual module dual sim
- OS Linux
- High-performance industrial-grade wireless module
- Using metal shell, protection grade IP30
- Wide power input range 5~36V
- Standard RS232/RS485/RS422 (Optional), Ethernet and WIFI Interface
- Provide standard wired WAN port (support standard PPPOE protocol)
- Can be directly connected to ADSL devices
- Provide central management software to facilitate devices management (Optional)
- Multiple working mode options
- Configuration and maintenance interface
- Support local and remote WEB mode or CLI mode
- WDT Watchdog design
- Complete anti-dropping mechanism to ensure that the data terminal is always online
- Built-in 1.5KV electromagnetic isolation protection for Ethernet interface
- SIM/UIM card interface built-in 15KV ESD protection
- Lightning protection of antenna interface (Optional)
Four-Faith 4G Cellular Router F-R200
- Four-Faith’s F-R200 is an IoT wireless communication router that plays the role of wireless data transmission through public networks in real IoT-applied solutions and other smart interactive scenarios.
- Equipped with an industrial-grade 32-bit processor and wireless modules, and with the watchdog system, the F-R200 cellular router is able to keep its stable operation even in harsh industrial environments.
- With abundant ports including RS232 and RS485, the F-R200 cellular router has the capacity to connect multiple devices simultaneously for wireless data transmission.
- The F-R200 cellular router has been widely used in the M2M field of the IoT industry chain, such as smart grids, smart transportation, and environmental protection, etc.
| CELLULAR WAN | • Supported Frequency Bands -- LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28 -- WCDMA: 2100(B1), 1900(B2), 850(B5) -- EV-DO/CDMA: 800(BC0) -- GSM/GPRS/EDGE: 850/900/1800/1900 • Automatic SIM based network operator switching |
| HOST INTERFACES | • 10/100/1000 Base-T RJ45 Ethernet port • RS-232 or RS-485 Serial Console Port • 3 SMA antenna connectors (WIFI and Double-cellular) • Active GPS antenna support (option) • (6) pin 3.5mm terminal block |
| INPUT/OUTPUT | • (6) pin 3.5mm terminal block. • (2) DI, (1) DO, (1) Relay. • Input ON Voltage: 5 to 30 VDC. • Input OFF Voltage: 0 to 3 VDC. • Output < 50mA @ 30VDC. • Relay:1A 250VAC/30VDC |
| LAN | • DNS, DNS Proxy • DHCP Server • IP Passthrough (option) • VLAN • Host Interface Watchdog • PPPoE |
| SERIAL | • TCP/UDP PAD Mode • Modbus (ASCII, DTU, Variable) • PPP • Reverse Telnet |
| EVENTS ENGINE (Option) | • Custom event triggers and reports. • Configurable interface, no programming. • Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature. • Report Types: TCP, UDP, SMS, SNMP Trap, HTTP, JSON. • Event Actions: Drive Relay Output. |
| WIFI | • IEEE802.11 ac, compatible IEEE 802.11 b/g/n. • AP and client mode. • Adjustable output power (Max: 26dBm) • Access point for up to 30 clients • Simultaneous access point/client mode • WEP, WPA-PSK, WPA2-PSK etc. Security |
| NETWORK AND ROUTING | • Network Address Translation (NAT) • Port Forwarding • Host Port Routing • VRRP • Reliable Static Route • Dynamic DNS |
| VPN | • IPSec, GRE, and OPENVPN Client • Up to 10 concurrent tunnels • Split Tunnel • Dead Peer Detection (DPD) • Multiple Subnets • VPN Failover |
