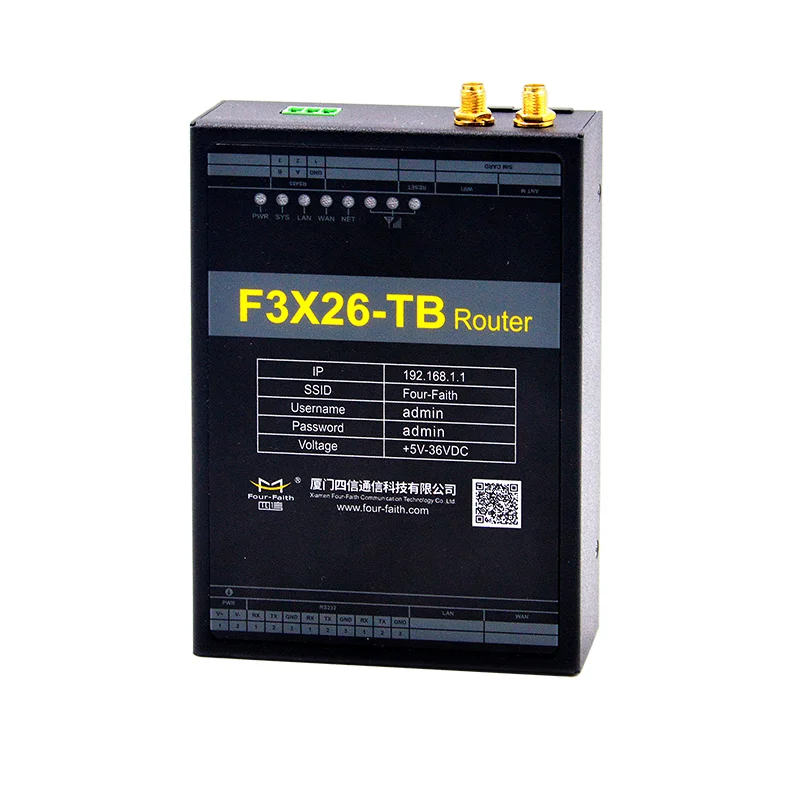

F3X26-TB
- Wireless 4G LTE Router
- Size: 126 x 89 x 30mm
- Outer shell: metal, IP30 protection level
- Standard ports: RS232, RS485, Ethernet LAN&WAN, Wi-Fi
- CPU: industrial-grade 32-bit processor & wireless module
- System: watchdog design, complete mechanisms, stable operation
- Applied scenarios: M2M fields of the IoT industry, smart factories, etc.
- OS Linux
- VPN GRE IPsec
- High-performance industrial-grade CPU
- High-performance industrial-grade wireless communication module
- Metal casing, IP30 protection level, suitable for most industrial control applications.
- Wide range power input (DC 5~36V)
- Standard RS232/RS485, ethernet and WIFI interface
- Standard wired WAN interface (Support standard PPPOE protocol)
- Intelligent data terminal, automatically enter transmission status after power-on
- Powerful central management software for easy device management (Optional)
- Easy to use and flexible, has multiple working modes
- Convenient system configuration and maintenance interface
- Support local and remote WEB or CLI access
- WDT protection, ensure system stability
- Multiple protection mechanism to ensure system stability, always keeping online
- RS232/RS485 with built-in 15KV ESD
- SIM/UIM card slot with built-in 15KV ESD
- Power interface with built-in phase-reversal and over-voltage protection
- Antenna interface with lightning protection (Optional)
- Ethernet interface with built-in 15KV ESD
Four-Faith 4G Wireless LTE Router F3X26-TB
- Four-Faith’s F3X26-TB is an IoT wireless communication router. It plays the role of transmitting long-distance wireless data through public networks in real IoT-applied solutions and other smart interactive scenarios.
- Equipped with an industrial-grade 32-bit processor and wireless module, and with the watchdog system, the F3X26-TB LTE router is able to keep its stable operation even in harsh industrial environments.
- With standard ports including RS232 and RS485, the F3X26-TB LTE router has the capacity to connect multiple devices simultaneously for wireless data transmission.
- The F3X46-TB LTE router has been widely used in the M2M field of the IoT industry chain, such as smart grids, smart transportation, and environmental protection, etc.
| Cellular Specification | |
| Item | Content |
| Standard & Band | Support Full-NetCom: LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE |
| Bandwidth | FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps TD-HSPA+: Downstream rate 4.2Mbps, uplink rate 2.2Mbps DC-HSPA+: Downstream rate 42Mpbs, uplink rate 5.76 Mbps HSPA+: Downstream rate 21Mpbs, uplink rate 5.76 Mbps UMTS: 384Kbps |
| Transmit Power | <23dBm |
| Sensitivity | <-97dBm |
| WIFI Specification | |
| Item | Content |
| Standard & Band | IEEE802.11b/g/n |
| Bandwidth | IEEE802.11b/g: 54Mbps (Maximum) |
| Security | IEEE802.11n: 144Mbps (Maximum) |
| Transmit Power | Support WEP, WPA, WPA2 encrypt methods, optional WPS function |
| Sensitivity | 15±2dBm |
| Hardware System | |
| Item | Content |
| CPU | Industrial-grade CPU |
| FLASH | 16MB (optional for 64MB) |
| DDR2 | 128MB (optional for 256MB) |
| Interface | |
| Item | Content |

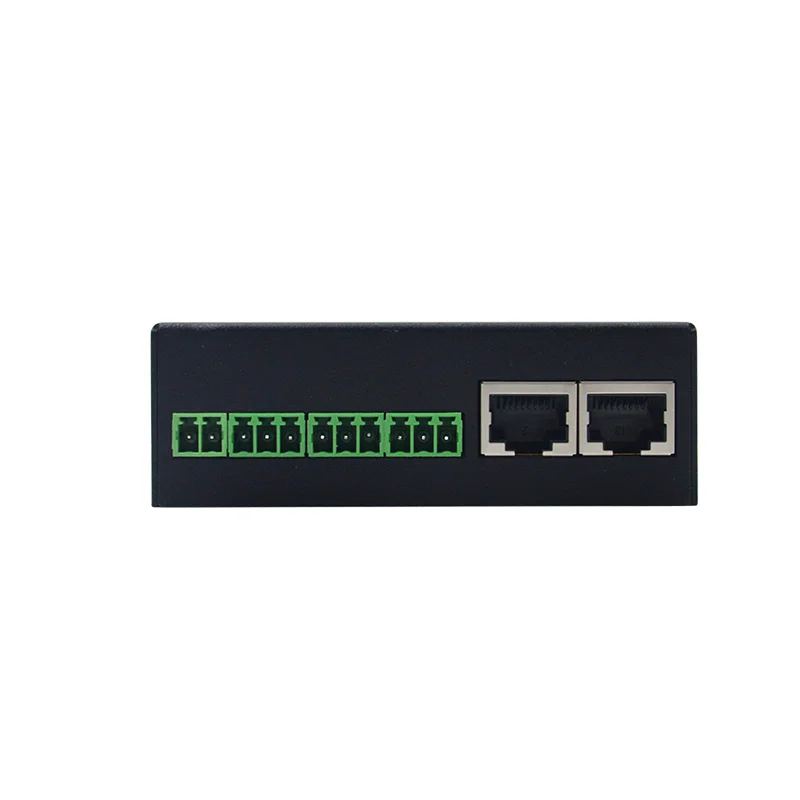

| WAN Interface | 1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD (can be used as a LAN) |
| LAN Interface | 1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD |
| Serial Port | 3 x RS232, 1 x 485 serial interface with built-in 15KV ESD Data bits:5, 6, 7, 8 bits Stop bits:1, 1.5 (optional), 2 bits Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional) |
| LED Indicators | “PWR”, “SYS”, “LAN”, “WAN”, “NET”, Signal Indicator |

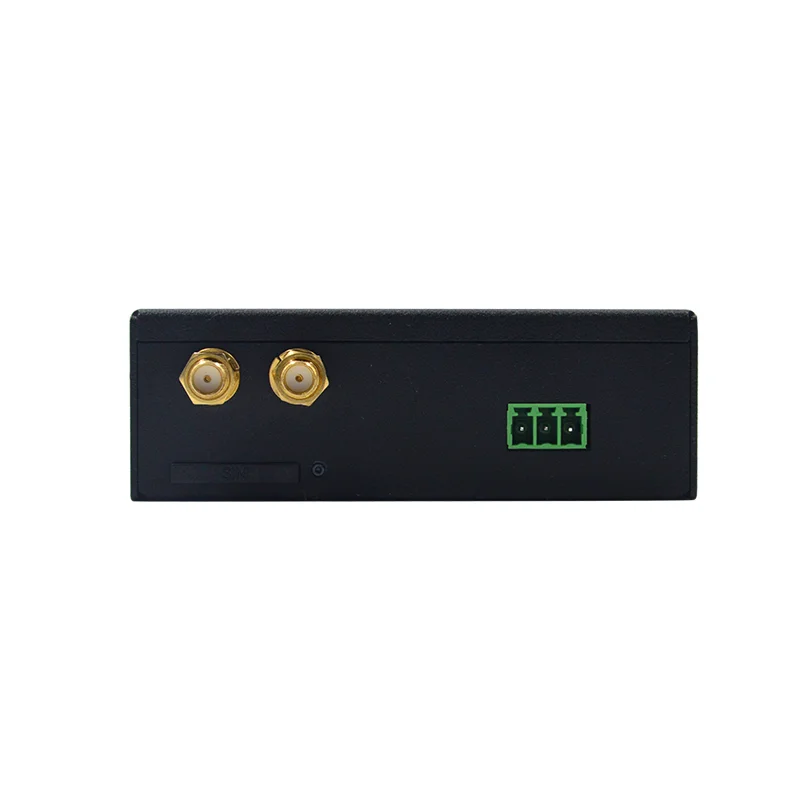

| Antenna Interface | Cellular: Standard SMA female antenna interface, characteristic impedance: 50 Ω |
| SIM/UIM Slot | WIFI: Standard SMA male antenna interface, characteristic impedance: 50 Ω |
| Power Interface | Standard SIM card slot, support 1.8V/3V SIM/UIM card, built-in 15KV ESD, support dual-SIM card option |
| Reset Button | Standard 3.5mm terminal block interface, with built-in phase-reversal and over-voltage protection |
| Power | |||||||
| Item | Content | ||||||
| Input Voltage | DC 12V/1.5A | ||||||
| Accepted Range | DC 5~36V | ||||||
| Power Consumption | |||||||
| Work Mode | Consumption | ||||||
| Standby | 95~135mA@12VDC | ||||||
| Communicating | 165~220mA@12VDC | ||||||
| Physical Properties | |||||||
| Item | Content | ||||||
| Casing | Metal casing, IP30 protection level | ||||||
| Dimensions | 126mm x 89mm x 30mm (excluding antennas and mountings) | ||||||
| Weight | 320g | ||||||
| Others | |||||||
| Item | Content | ||||||
| Operating Temperature | -35～+75℃ | ||||||
| Storage Temperature | -40～+85℃ | ||||||
| Relative Humidity | 95% (non-condensing) | ||||||
| ORDERING INFORMATION | |||||||
| Model | Description | WAN | LAN | Cellular Antenna |
WIFI Antenna |
SIM/ UIM |
|
| F3X26-TB-FL | FDD/TDD-LTE WIFI Router | 1 | 1 | 1 | 1 | 1 | |
| F3X26-TB-L | LTE WIFI Router | 1 | 1 | 1 | 1 | 1 | |
| F3X26-TB-FL-SIM2 | FDD/TDD-LTE WIFI Router | 1 | 1 | 1 | 1 | 2 | |
| F3X26-TB-L-SIM2 | LTE WIFI Router | 1 | 1 | 1 | 1 | 2 | |
