FST100
LoRaWAN Temperature & Humidity Sensor
- Certification: CE, FCC
- Humidity range: 0-100% RH
- Temperature range: -40-125 degrees Celsius
- Protection: ABS+PC shell, IP67 waterproof and dust-proof
- Applied scenarios: M2M fields of the IoT industry, cold chain transportation, etc.
- High-performance industrial-grade chip and wireless module
- Adopt high precision sensor chip
- Ultra-low power design, built-in 8200mA ultra-large capacity lithium battery
- Support Four-Faith proprietary protocol and standard LoRaWAN® protocol
- Quick NFC configuration and TYPE C interface configuration, easy to use
- Equipped with Four-Faith sensor cloud platform and sensor cloud APP
- Support NFC upgrade, local serial port upgrade, and remote upgrade
- Support wall mount installation

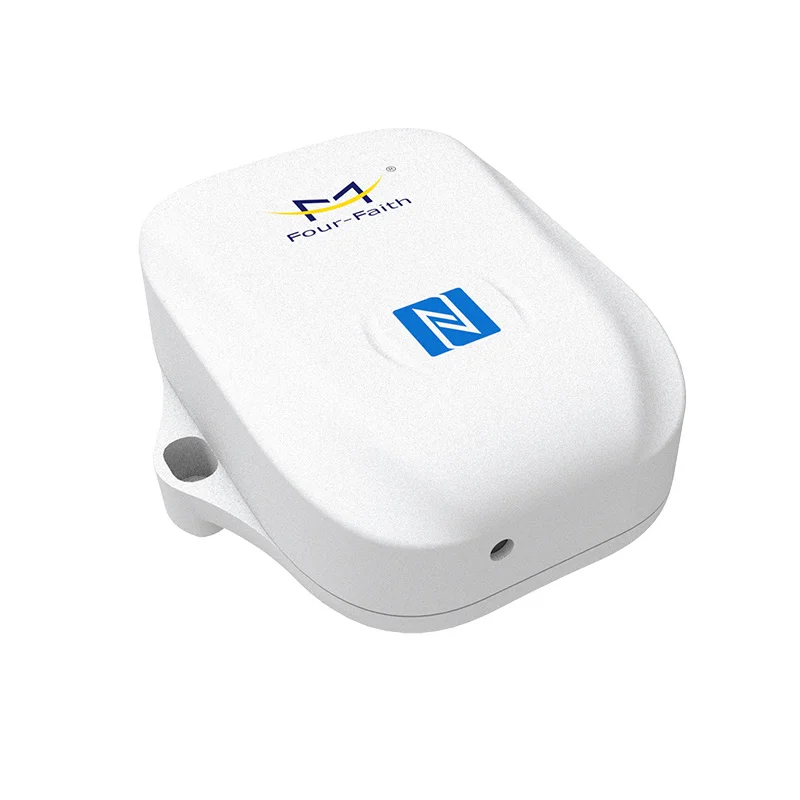

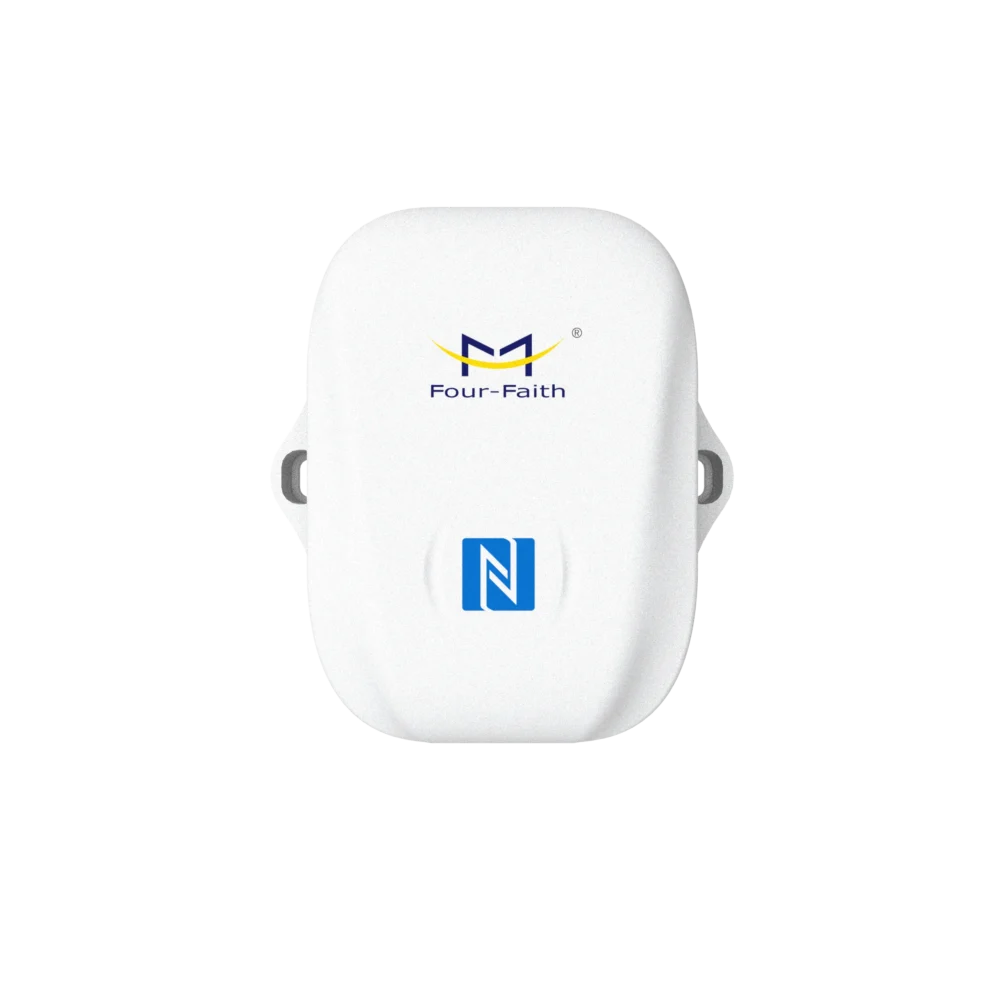

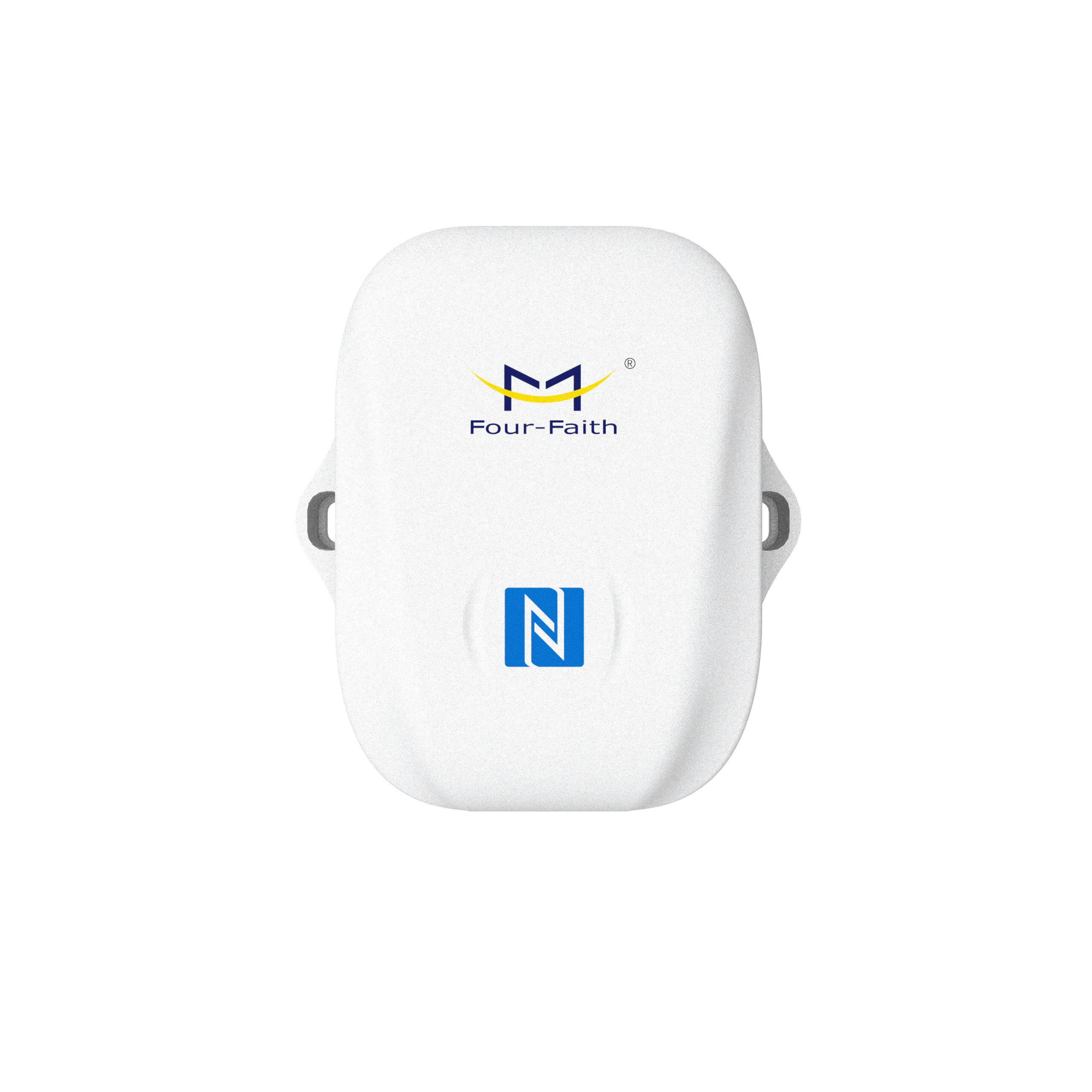

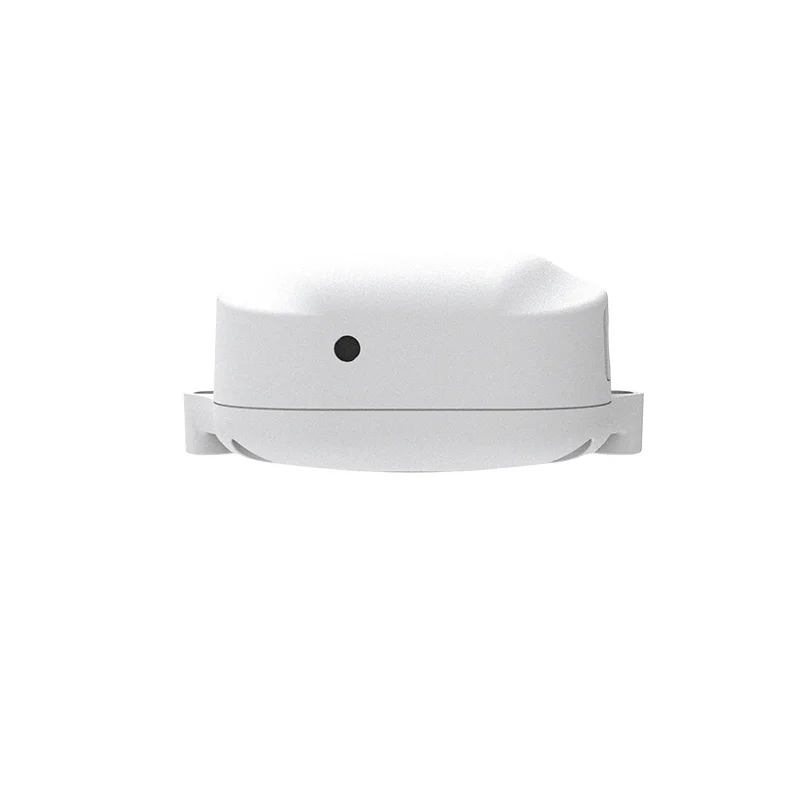

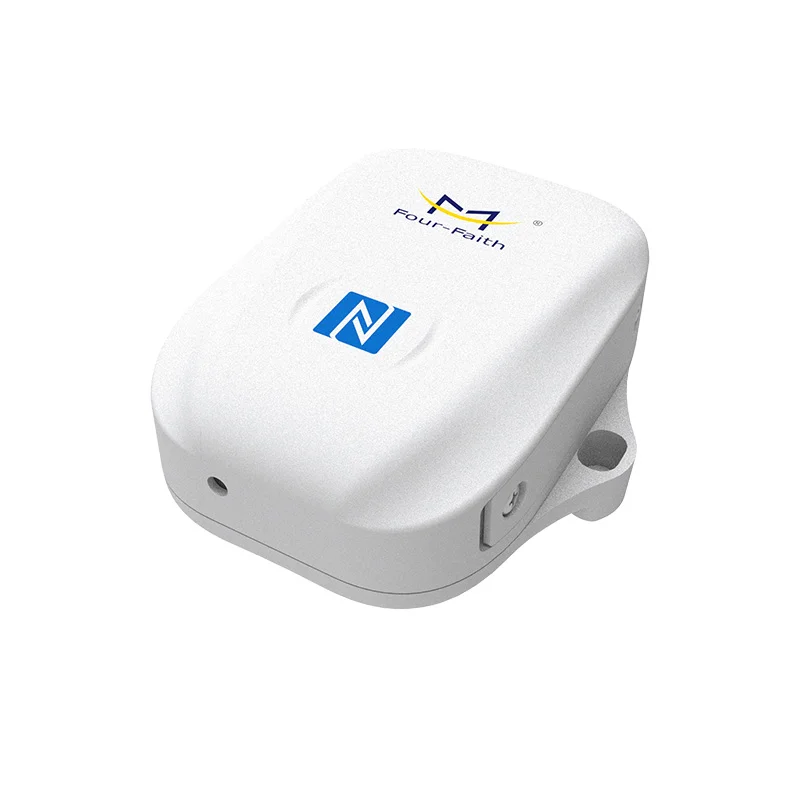

Four-Faith LoRaWAN Temperature & Humidity Sensor FST100
- Four-Faith’s FST100 sensor is a wireless data terminal based on LoRa technology, and it plays the role of data transmission through the LoRa network in IoT-applied solutions and other smart interactive scenarios.
- The FST100 temperature and humidity sensor adopts self-developed LoRa modules, and with IP67 waterproof and dustproof protection, it is able to keep the stable operation even in harsh industrial environments.
- The FST100 temperature and humidity sensor has been widely used in fields like cold chain transportation, data labs, and other places that require consistent temperature and humidity.
Product Specification
| Characteristics | |
| Items | Contents |
| Sensor Type | Digital Sensor |
| Sensor temperature Measuring Range | -40℃~125℃ |
| Sensor Humidity Measuring Range | 0 ~ 100% RH |
| Temperature Measurement Accuracy | ±0.2℃ (Typical 0-65℃, minimum or maximum temperature accuracy range does not exceed ±0.8℃) |
| Humidity Measurement Accuracy |
±1.8% RH (Typical 30-70RH, minimum or maximum humidity accuracy does not exceed ±7%RH) |
| Operating Temperature | -20℃~60℃ |
| Frequency | Low frequency:410-510MHz High frequency:863-928MHz |
| Protocol | Private protocol, LoRaWAN® protocol |
| Indoor Communication Distance | Penetrates 6 floors |
| Outdoor Communication Distance | 4.2 Km |
| Operating Voltage | Built-in 3.6V/8200mAh lithium battery (Disposable) |
| Transmitting Current | ≤86.2mA, duration less than 0.53second, (SF=9@20dBm) |
| Receiving Current | ≤11.3mA, (SF=9@20dBm) |
| Sleep Mode Current | ≤15.3uA, (SF=9@20dBm) |
| Note: The smaller the SF (the higher the rate), the shorter the transmission distance, the shorter the launch time, and the less the function | |
| Battery Life | |||
| Item | Voltage/Current | Data Rate | Collection Interval (Time) |
| Deep Sleep | <15.3uA | Level 3 (Further transmission) |
5 minutes: about 1400 days (4 years) 10 minutes: about 3000 days (8 years) |
| Receiving Data | <11.3mA | ||
| Transmitting Data | <86.2mA | ||
| Deep Sleep | <15.2uA | Level 4 (Closer transmission) |
5 minutes: about 1600 days (4.5 years) 10 minutes: about 3200 days (9 years) |
| Receiving Data | <11.3mA | ||
| Transmitting Data | <86.2mA | ||
| Note: The battery working time is the theoretical day. The theoretical day is also affected by wireless signals and working temperature and humidity. The battery working time may be slightly shorter or longer. | |||
| Hardware | |||
| Item | Content | ||
| CPU | Industrial grade 32-bit communication processor | ||
| Flash | 128KB | ||
| SRAM | 16KB | ||
| Other | |||
| Item | Content | ||
| Shell | PC+ABS material, anti-exposure, anti UV, anti-aging, impact resistance, protection grade IP67 | ||
| Dimension | 90x65x34.5mm (Excluding antenna and mounting parts) |
||
| Installation | Wall mount | ||
| Flame Resistance | UL94V-0 | ||
| Weight | 365g | ||
| Operating Temperature | -20~+60℃（-4~+140℉） | ||
| Storage Temperature | -20~+60℃（-4~+140℉） | ||
| Humidity | 95% (No condensation) | ||
Order Information
| Products | Frequency | Description |
| FST100-00L | 410-510 MHz | The sensor terminal supports only disposable lithium sub-battery power consumption and built-in temperature and humidity sensors，Support private protocol and LoRaWAN protocol, support LoRaWAN frequency band CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923, etc |
| FST100-00H | 863-928 MHz |
