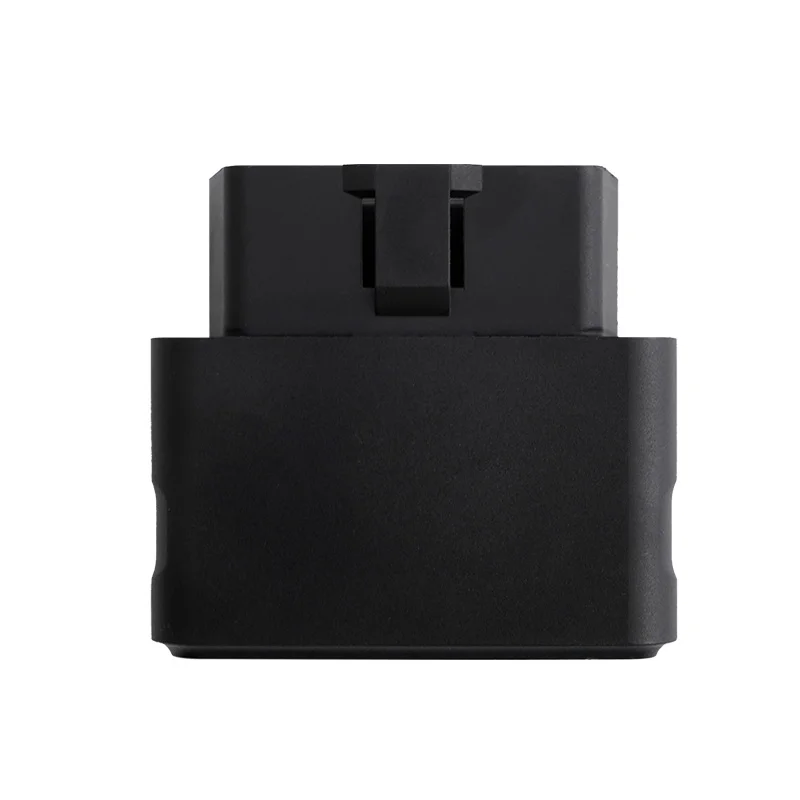

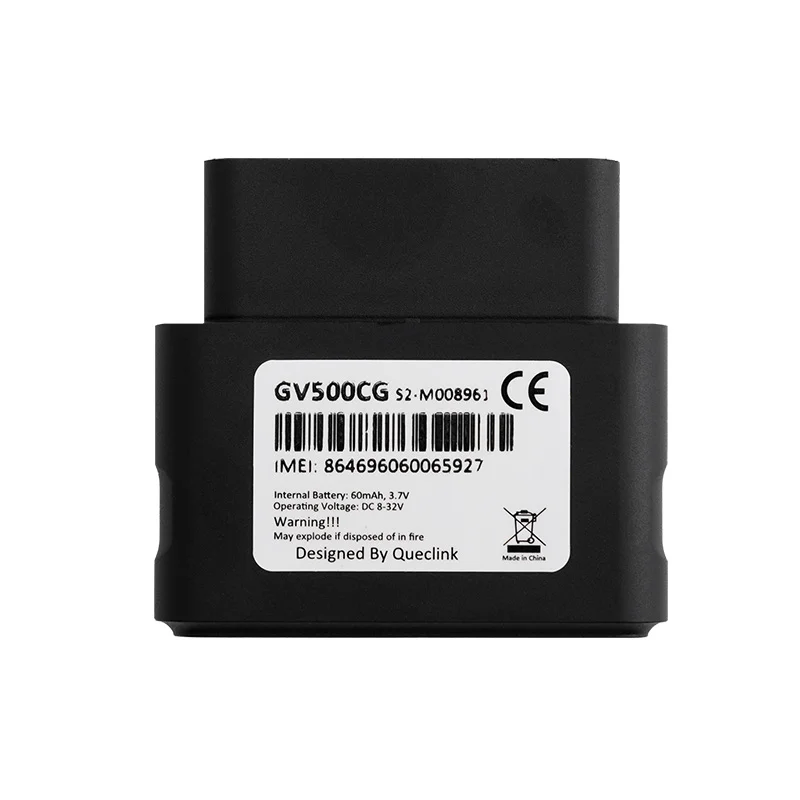

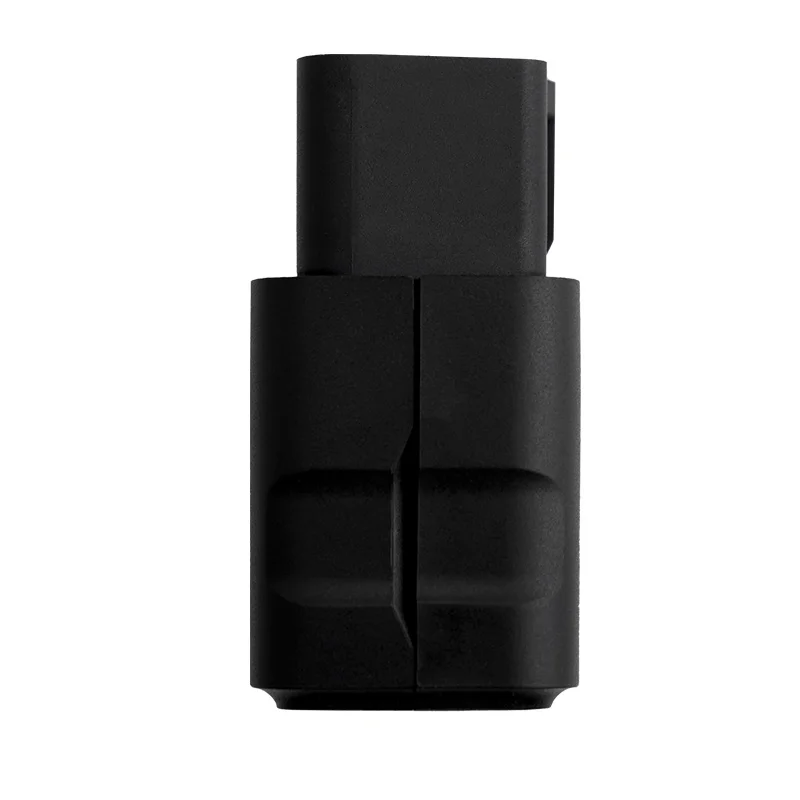

GV500CG
LTE Cat 1 Mini OBD Tracker
- LTE Cat 1 with 2G fallback
- Compact Size
- Supports BLE 5.2
- Ideal for UBI/Insurance Telematics, Car Leasing and Connected car
- Crash Detection
- Driving Behavior Monitoring
- Geo-fences
- Virtual Ignition Detection
- Scheduled Timing Report
- OTA Control
- Up to 10,000 Buffer Messages
-
GV500CG is a compact 4G OBD tracker, integrated with LTE Cat1, ensuring a reliable and future-proof network. Its competitive minimum size makes it possible to be installed in all cars without any abruptness and incompatibility. The product also features driver behavior monitoring, crash detection, mileage recording, as well as BLE connectivity, which is ideal for insurance applications and connected car services.
-
LTE Specifications
| Operating Band | Cat 1: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
| Data Transmission | LTE-FDD: Max 10Mbps (DL)/Max 5Mbps (UL) |
GSM Specifications
| Frequency | GSM850/GSM900/GSM1800/GSM1900 |
| Data Transmission | GPRS:(DL)85.6Kbps/(UL)85.6Kbps EDGE:(DL)236.8Kbps/(UL)236.8Kbps |
GNSS Specifications
| GNSS Type | All-in-One GNSS receive |
| Sensitivity | Autonomous: -147 dBm Hot Start: -163 dBm Reacquisition: -160 dBm Tracking: -165 dBm |
| Position Accuracy (CEP) | Autonomous: < 2.0m |
| TTFF (Open Sky) | Cold start: 24s average Warm start: 24s average Hot start: 1s average |
General Specifications
| Dimensions | 50(L) * 46(W) * 23(H) mm 1.97(L) * 1.81(W) * 0.90(H) inch |
| Weight | 41g (1.45oz) |
| Backup Battery | Li-Polymer, 3.7V, 60 mAh |
| Operating Voltage | 8V ~ 32V DC |
| Operating Temperature | -20 ℃ ~ +60 ℃ (-4 ℉ ~ 140 ℉ ) |
| Storage Temperature | -40 ℃ ~ +80 ℃ (-40 ℉ ~ 176 ℉ ) |
| Buffer Messages | Up to 10,000 buffer messages |
| BLE | Support BLE 5.2 protocol |
Interfaces
| Cellular Antenna | Internal only |
| GPS Antenna | Internal only |

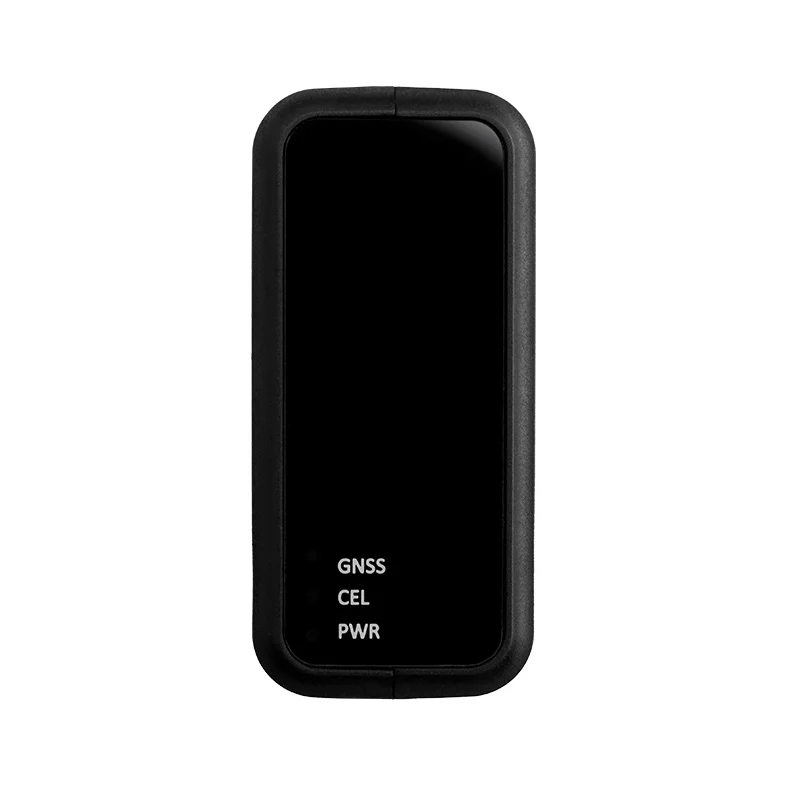

| LED Indicators | Cellular network, GNSS, Power status |
| Micro USB | Internal USB port for configuration and FW upgrade |

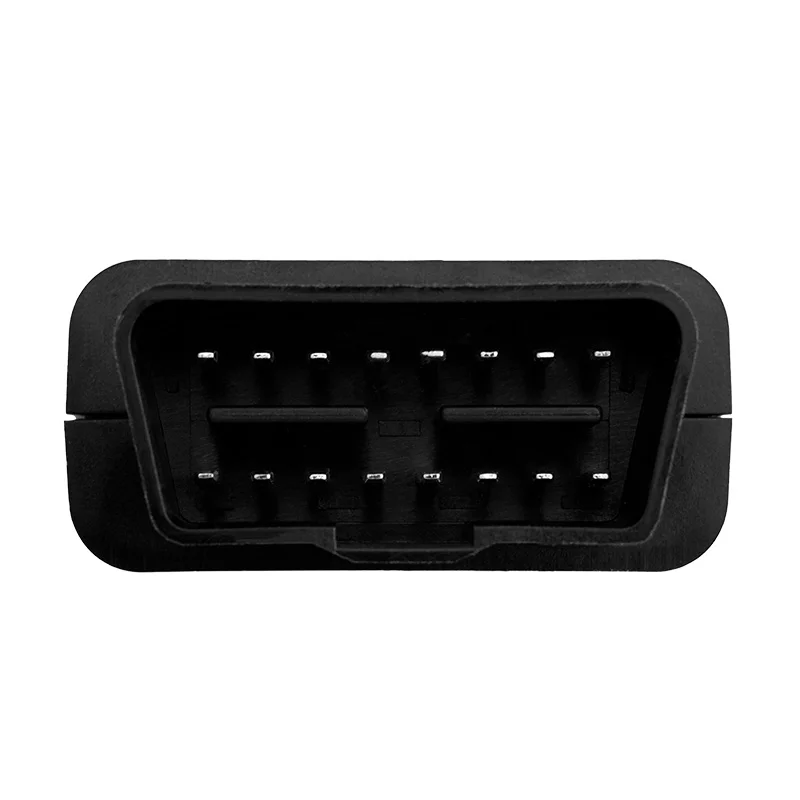

| OBD | The OBD port provides power only |
Air Interface Protocol
| Transmit Protocol | TCP, UDP, SMS |
| Scheduled Report | Report position and status based on preset time intervals, distance, mileage or a combination of these settings |
| Geo-fences | Geo-fence alarm and parking alarm, support up to 20 internal geo-fence regions |
| Low Power Alarm | Alarm when backup battery is low |
| Power On/Off Report | Report when the device is powered on and off |
| Tow Alarm | Alarm for tow event in ignition-off state |
| Jamming Detection | Alert based on interference detection |
| Virtual Ignition Detection | Based on voltage and accelerometer |
| Driving Behavior Monitoring | Aggressive driving behavior detection, including harsh braking, acceleration, etc. |
| Crash Detection | Accident data collection for reconstruction and analysis |
| Motion Detection | Motion alarm based on internal 3-axisaccelerometer |
| MQTT | Report data to the MQTT server |
| TLS | TLS Data Encryption,supported TLS1.2 |
