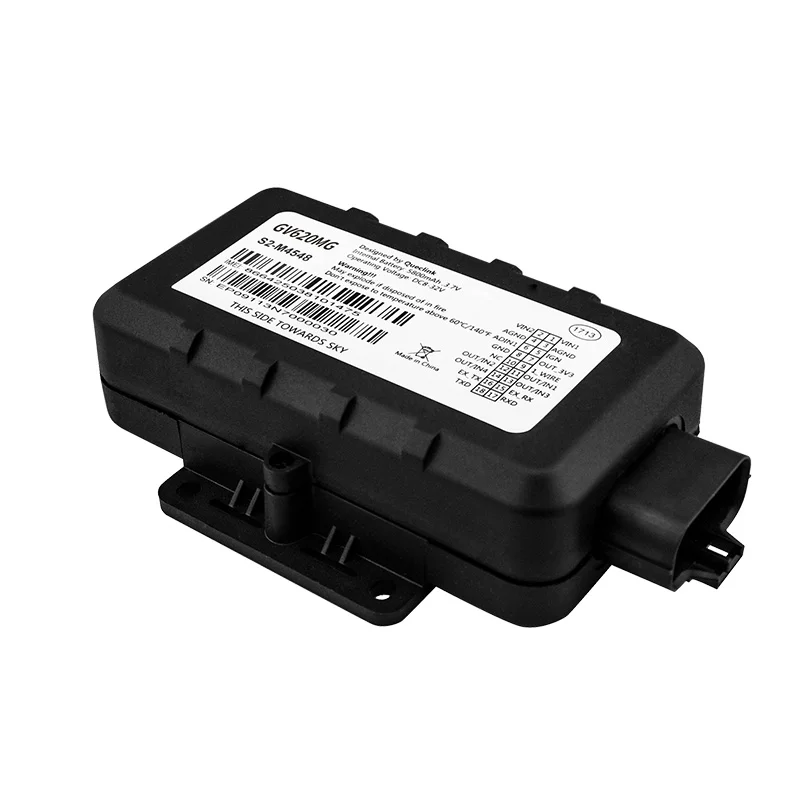

GV620MG
- LTE Rechargeable Ruggedized Trailer Tracker
- Global LTE Cat M1/NB2 with 2G fallback using unique antenna solution
- Ruggedized and waterproof case that is IP67 compliant and designed for use in harsh environments
- Internal large battery pack with 120-day standby time, supports dual external power sources
- Supports BLE temperature and humidity sensor, BLE key fob and BLE padlock
- Ideal for trailer, tanker and flatbed truck tracking applications
- Ruggedized Case
- BLE 5.0
- Multiple I/O Interfaces
- 1-wire Interface
- RS232 Port
- OTA Control
- Scheduled Timing Report
- Geo-fences
- Low Power Alarm
- Power on Report
- Fuel Level Monitoring
- Support Temperature Sensor
The GV620MG is an LTE product specifically designed for heavy duty vehicles including trailers, tankers, refrigerated and flatbed trucks. Its ruggedized waterproof design ensures the product remains reliable when installed in the harsh environments commonly found in heavy transportation such as fuel and chemical transportation. The GV620MG can work for up to three months without external power, making it ideal for tracking trailers even when disconnected. The wide range of pre-integrated wired and wireless accessories provided either by Queclink, or our carefully selected partners, allows users to apply the GV620MG in various fleet industries. Additionally, this product supports dual power sources when mounted on refrigerated trailers and the serial interface is designed for integration with refrigeration unit protocols.
LTE Specifications
| Operating Band | Cat M1: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B26/B27/B28/B66/B85 Cat NB2:(*Cat NB1 is available in Brazil) LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B28/B66/B71/B85 |
| Data Transmission | eMTC (DL) 588 Kbps eMTC (UL) 1119 Kbps NB2 (DL) 127 Kbps NB2 (UL) 158.5 Kbps NB1 (DL) 32 Kbps NB1 (UL) 70 Kbps |
EGPRS Specifications
| Frequency | EGPRS 850 / 900 / 1800 / 1900 MHz |
| Data Transmission | GPRS: (DL)107Kbps, (UL)85.6Kbps EDGE: (DL)296Kbps, (UL)236.8Kbps |
GNSS Specifications
| GNSS Type | u-blox All-in-One GNSS receiver |
| Constellation Support |
GPS, Glonass, Galileo, Beidou |
| Sensitivity | Cold start: -148 dBm Hot start: -160 dBm Tracking: -167 dBm |
| Position Accuracy (CEP) | Autonomous: < 2m |
| TTFF (Open Sky) | Cold start: 24s average Hot start: 1s average |
General Specifications
| Dimensions | 138 × 66 × 38mm 5.43’’(L) × 2.60’’(W) × 1.50’’(H) |
| Weight | 320g (11.29 oz) |
| Backup Battery | 2×18650 Li-ion battery, 3.7V, 5800mAH |
| Internal G-sensor | Used for speed alarm and motion alarm |
| Standby Time | 120 days, report one location and online 15 minutes per day |
| Waterproof | IP67 compliant |
| Operating Voltage | DC 8V to 32V |
| Operating Temperature | -30℃~+80℃ |
| Charging Temperature | +10℃~+45℃ |
| BLE | Support BLE 5.0 protocol |
Interfaces
| Digital Inputs | 1 positive trigger input for ignition detection |
| Analog Input | 1 analog input (0V-32V) |
| 1-wire Interface | Support 1-wire temperature sensor (maximum 8 channels) |
| Power Output | 1 power output (3.3V) for external devices |
| Digital Inputs/Outputs | 4 negative trigger inputs for normal use, or 4 open drain outputs 150mA max drive current |
| Serial Port | 1 RS232 port |
| Cellular Antenna | Internal only |
| GNSS Antenna | Internal only |
| BLE Antenna | Internal only |

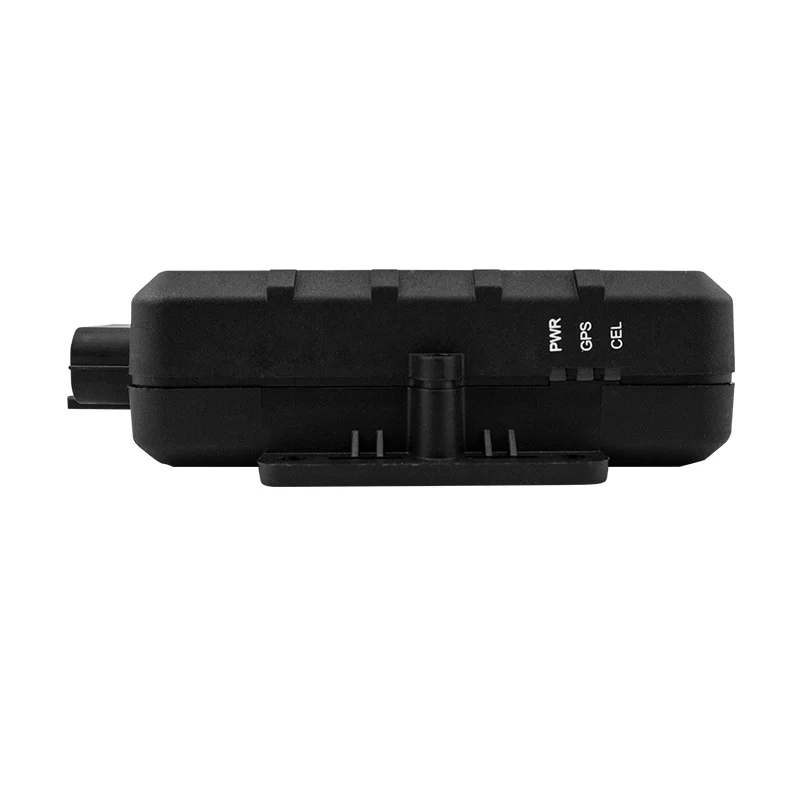

| LED Indicators | CEL, GNSS, PWR |

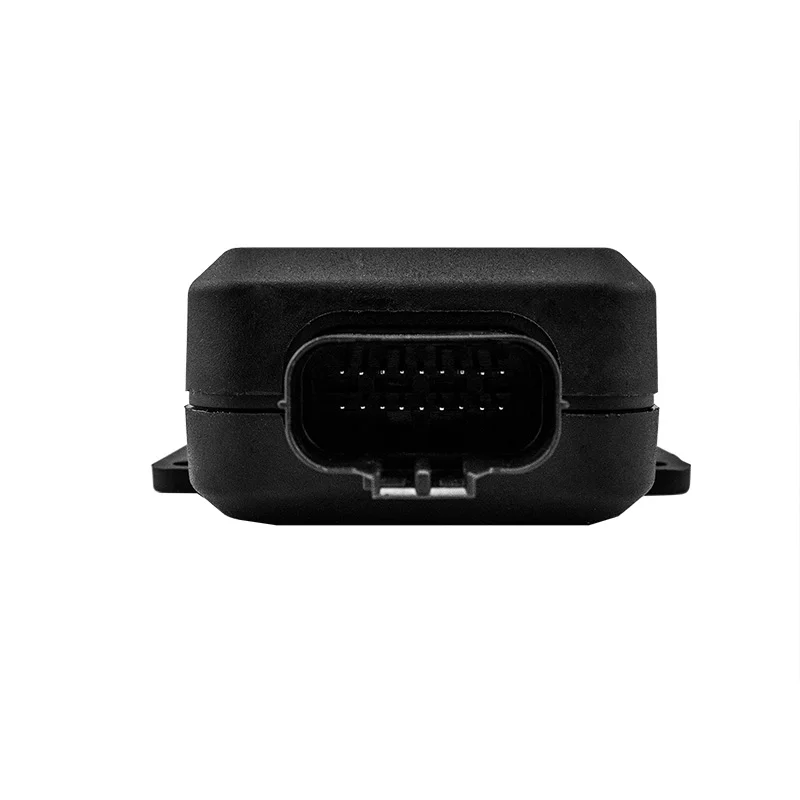

| Connector | 18 pin waterproof connector |
Air Interface Protocol
| Transmit Protocol | TCP, UDP, SMS |
| Scheduled Report | Report position and status based on preset time intervals, distance, mileage or a combination of these settings |
| Geo-fences | Geo-fence alarm,support up to 20 circular and 20 polygon geo-fence regions |
| Low Power Alarm | Alarm when backup battery is almost exhausted |
| Power On Report | Report when the device is powered on |
| Special Alarm | Special alarm based on digital/analog input,preset speed and internal 3-axis accelerometer |
| Remote Control | OTA control of digital outputs |
