UG63
Mini LoRaWAN® Gateway
Mini Meets Mighty
- Compact and Eye-catching Design
- Cost-Effective for Small-Scale Deployments
- Supports Cellular and Ethernet Backhaul
- Wire-Free Deployment with 4G
- Highly Compatible with Mainstream Network Servers
- Blind Spot Coverage
- Global Frequency Plans
- Remote Configuration and Management
Small in Size,
Big on Connectivity
- 8 Channels
- Up to 2000 End-Nodes
- Up to 2 km Communication Range in Urban Areas
- Global Frequency Plans
- (RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4)
Wire-Free Deployment with 4G
With 4G LTE, UG63 brings a wireless communication , simplifying the network setup process. Moreover, the UG63 ensures versatile connectivity options and a reliable connection by supporting Ethernet and Cellular backhaul.
Cost-Effective for
Small-Scale Deployments
UG63 is a cost-effective device designed to provide network coverage for numerous yet dispersed small-scale applications where the number of end nodes is limited, but each area requires its own gateway.
Eliminating Blind Spots
UG63, in collaboration with remote LoRaWAN® network server, can provide complementary network coverage to achieve comprehensive LoRaWAN® network coverage, leaving no blind spots in corner regions or weak signal regions
External Antennas for
Enhanced Connectivity

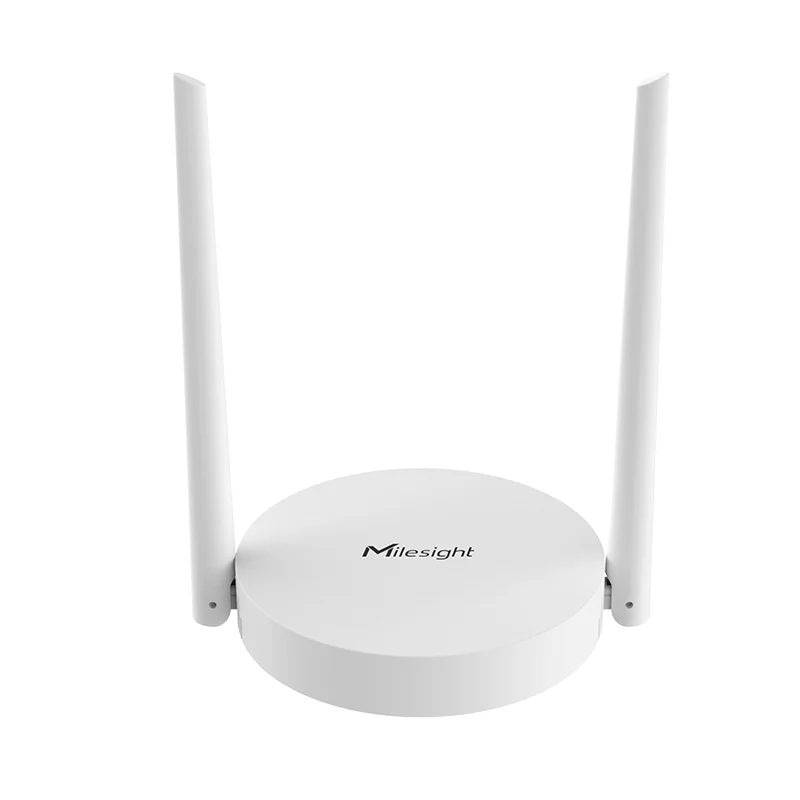

The UG63 is outfitted with external LoRa and cellular antennas, enhancing signal range and strength. This feature guarantees robust communication between LoRaWAN® sensors and the cloud platform.
Compatibility with Major Network Servers
Chirpstack
Basics Station
The Things Network
AWS
Senet
Remote Embedded NS
Milesight DeviceHub LNS
Easy Configuration via Wi-Fi
UG63 offers effortless Wi-Fi configuration within a 10-15 meter range, eliminating the need for proximity. This essential feature simplifies setup, particularly in challenging locations, saving time and enhancing accessibility. Note: Wi-Fi is solely utilized for configuration purposes.
Remote Management with New Milesight DeviceHub
New Milesight DeviceHub, which integrates LNS (LoRaWAN® Network Server), facilitates remote device management and gateway data administration, streamlining the processes of device deployment, monitoring, maintenance, and upgrades for enhanced convenience
Gateway Online Demo
Milesight LoRaWAN® Gateway Online Demo offers more visibility into IoT data practices and increases transparency around your gateway governance and management.
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas
- High Compatibility: compliant with standard LoRaWAN® sensor and network servers
| Hardware System | |
|---|---|
| CPU | Dual-core 240MHz, 32-bit Xtensa® LX7 |
| Memory | 8 MB PSRAM |
| Flash | 16 MB Flash |
| LoRaWAN® | |
| Antenna Connector | 1 × External Antenna |
| Channel | 8 (Half-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Cellular Interface (Optional) | |
| Network | 4G LTE (CAT 1)/GSM |
| Antenna | 1 x External Antenna |
| Cellular Band | L08GL (Global except North America): LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66 LTE-TDD: B34/38/39/40/41; GSM: B2/3/5/8 L09NA (North America): LTE-FDD: B2/4/5/12/13/66 |
| SIM Slots | 1 (Micro SIM-3FF) |
| Ethernet Interface | |
| Port | 1 × RJ45 WAN Port |
| Physical Layer | 10/100 Base-T (IEEE 802.3) |
| Data Rate | 10/100 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Wi-Fi | |
| Standards | IEEE 802.11b/g/n, 2.4 GHz |
| Mode | AP Mode (Device Configuration Only) |
| Others | |
| Button | 1 × Reset Button |
| Console Port | 1 × USB 2.0 (Type-C) for Power Supply and Console |
| LED Indicators | 1 × SYSTEM, 1 x LTE |
| Built-in | Watchdog, Timer |
| Power Supply and Consumption | |
| Power Input | 1. 5V by Type-C Port 2. 5~12V DC by 3.5mm 2-pin Terminal Block 3. 802.3af standard PoE input by (Optional) PoE Splitter |
| Power Consumption | Max 3.1 W |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Dimensions | Ф 115 x 21 mm (Ф 4.52 x 0.83 in) |
| Color & Material | White, PC + ABS |
| Installation | Desktop, Wall or Ceiling Mounting |
| Environmental | |
| Operating Temperature | -20°C to +50°C (-4℉ to +122℉) |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
| Approvals | |
| Regulatory | CE, FCC |
| Environmental | RoHS |
