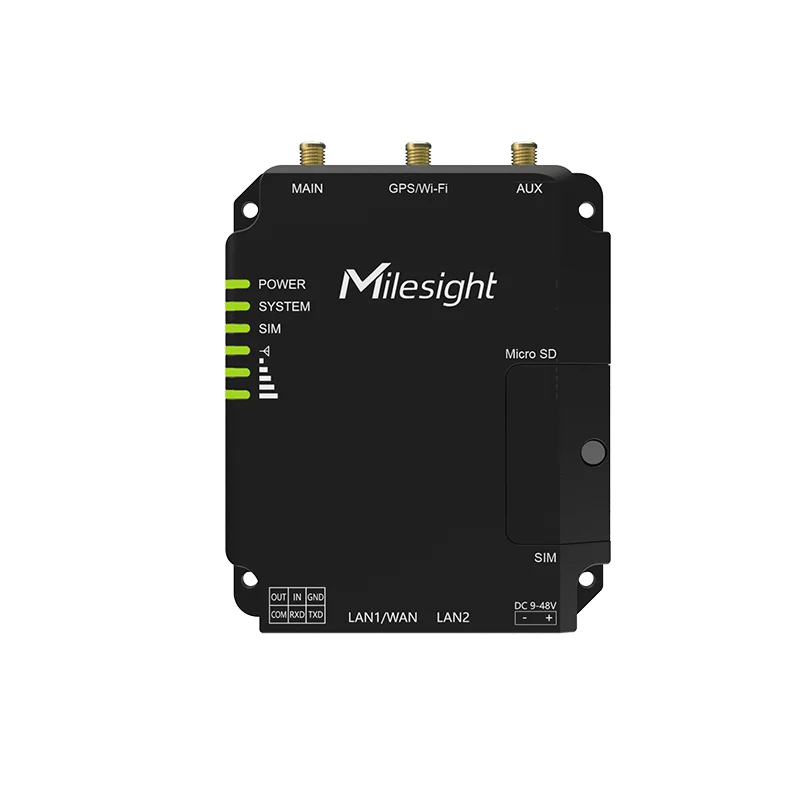

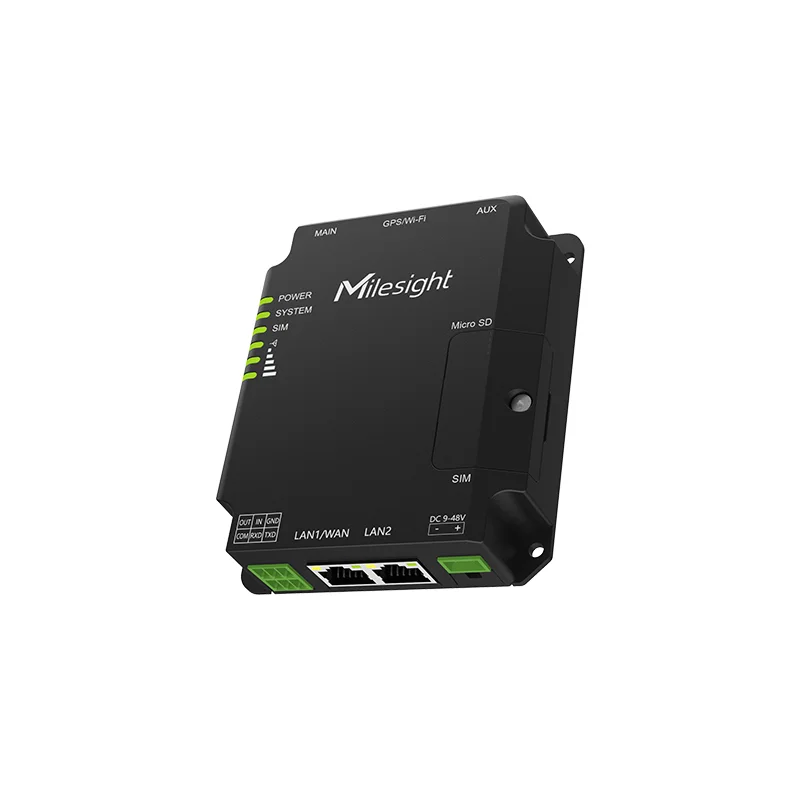

UR32
- Industrial Cellular Router Pro Series
Pocket-Sized Industrial Grade Router
- Industrial Grade Design for Harsh Environment
- Rugged And Pocket-Sized Design
- Embedded Python SDK for Secondary Development
- Ultra-High Protection System
- Rich Interfaces for Multiple Applications
- Stable Cellular, Ethernet, and Wi-Fi Transmission
- Open VPN Tunnel and Various Protocols
- Remote Management on MilesightVPN and DeviceHub
Enjoy Reliable Pocket-Sized Cellular Connectivity
With a compact size, UR32 is specially designed to be LOW-COST and HIGHLY-EFFICIENT.
Industrial Grade Design
To fulfill the market demand, UR32 is built with NXP industrial grade processor, IP30 rated hardened enclosure, industrial components, and a wide operation range from -40°C to 70°C (-40℉ to +158℉) for even harsh environments. It also features a broad supply voltage range of 9V to 48V DC.
Compact Design
With a compact design, UR32 is specially designed to bring cost-effective performance. The small and lightweight enclosure allows it to easily fit into small cabinets or machines when space is limited.
Embedded Python SDK
UR32 is scalable for secondary development with Python SDK embedded. It can be extended to be more applicable and customized to truly meet actual demands.
Ultra-Reliable Protection
System
- Quick Network Backup
Automated failover/failback backup among Ethernet, Cellular(dual SIM), and Wi-Fi - Embedded Watchdog
Embedded with hardware watchdog to automatically recover from various failures - Secured Mechanism
Centralized authentication and authorization of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority
Rich Interfaces
Scaling up M2M and IoT applications is made possible by the UR32’s rich interfaces which include RS232 (RS485 optional), 2 fast Ethernet ports, and Digital Input/Output.
Stable Internet Access
Integrating embedded cellular modem and dual SIM function, the UR32 provides a 3G/4G cellular network with reliable download and uplink speed. It also has 2 Ethernet ports and supports Wi-Fi that is complying with 802.11b/g/n standards for uninterrupted internet access.
Open VPN Tunnel and
Various Protocols
Featuring with multiple network protocols and VPN tunnels, UR32 provides secure and reliable solutions for a range of M2M/IoT deployments.
- Network Protocols Such as SNMP, TR069, MOTT, and VRRP
- VPN tunnels Such as lPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN/WireGuard
Unimpeded Applications
Certifying your trust with various certificates, UR32 is a trustworthy router that has undergone rigorous testing and meets high standards for quality, reliability, and security, and gets passes for some special markets such as Verizon for North American.
MilesightVPN
UR32 supports connection and management with MilesightVPN
- Easy Connection via Authentication Code
- Connection Status Overview
- Remote and Secure Access to Field Devices
- Magnetic Version
DeviceHub
Milesight DeviceHub offers a high-efficiency and low maintenance solution to easily deploy Milesight Industrial Cellular Routers across multiple locations, reducing complexity and increasing productivity.
- Central Management
- Device Status Monitoring
- Remote & Bulk Configuration
| Hardware System | |
|---|---|
| CPU | ARM Cortex-A7,528 MHz |
| Memory | 128 MB DDR3 RAM and 128MB Flash |
| Extendable Storage | 1 × Micro SD Slot |
| Cellular Interface | |

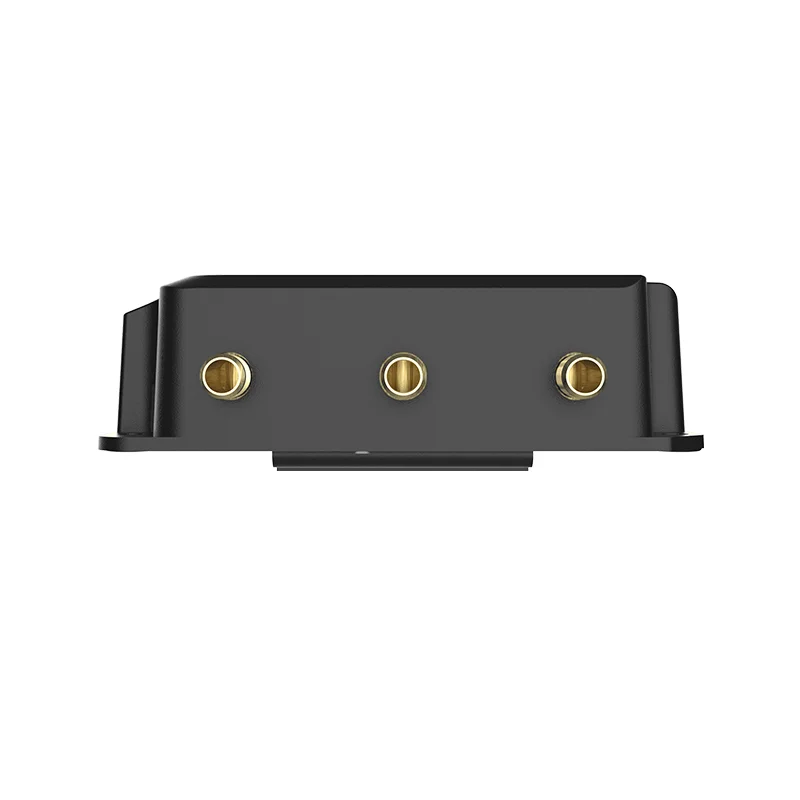

| Antenna Connector | 2 × 50 Ω SMA Connectors (Center PIN: SMA Female) |
| SIM Slots | 2（Mini SIM-2FF） |
| Ethernet Interface | |

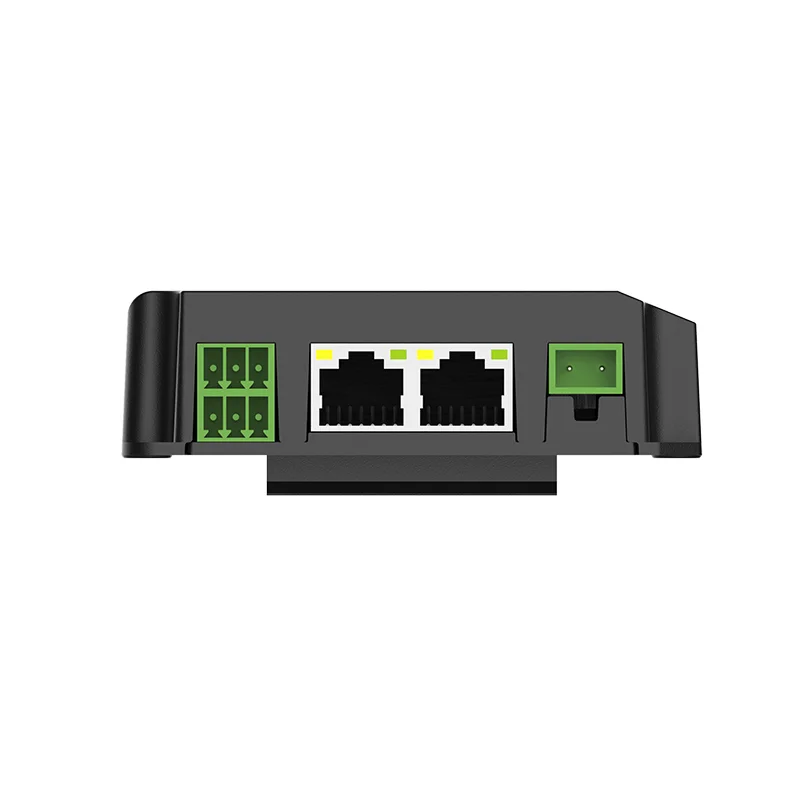

| Numbers | 2 × 10/100 Mbps |
| Property | 1 × WAN + 1 × LAN or 2 × LAN |
| Mode | Full or half duplex (Auto-Sensing) |
| PoE (Optional) | 2 × 802.3 af/at PoE PSE on LAN Ports |
| Wi-Fi Interface (Optional) | |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: RP-SMA Female) |
| Standards | IEEE 802.11 b/g/n,2.4GHz |
| Tx Power | 802.11b: 16 dBm +/-1.5 dBm (11 Mbps) 802.11g: 14 dBm +/-1.5 dBm (54 Mbps) 802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7) |
| Modes | AP or Client mode |
| Security | WPA/WPA2 authentication, WEP/TKIP/AES encryption |
| GPS (Optional) | |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Protocol | NMEA0183, PMTK |
| Serial Interface | |
| Numbers | 1 × RS232 (RS485 Hardware Optional) |
| Connector | 3.5mm Terminal Block |
| Baud Rate | 300bps to 230400bps |
| DI/DO | |
| Numbers | 1 × DI (dry contact) + 1 × DO (wet contact), Galvanic Isolation |
| Connector | 3.5mm Terminal Block |
| Maximum V/A | 0.3A@30VDC (DO) |
| Others | |
| Reset Button | 1 × RESET |

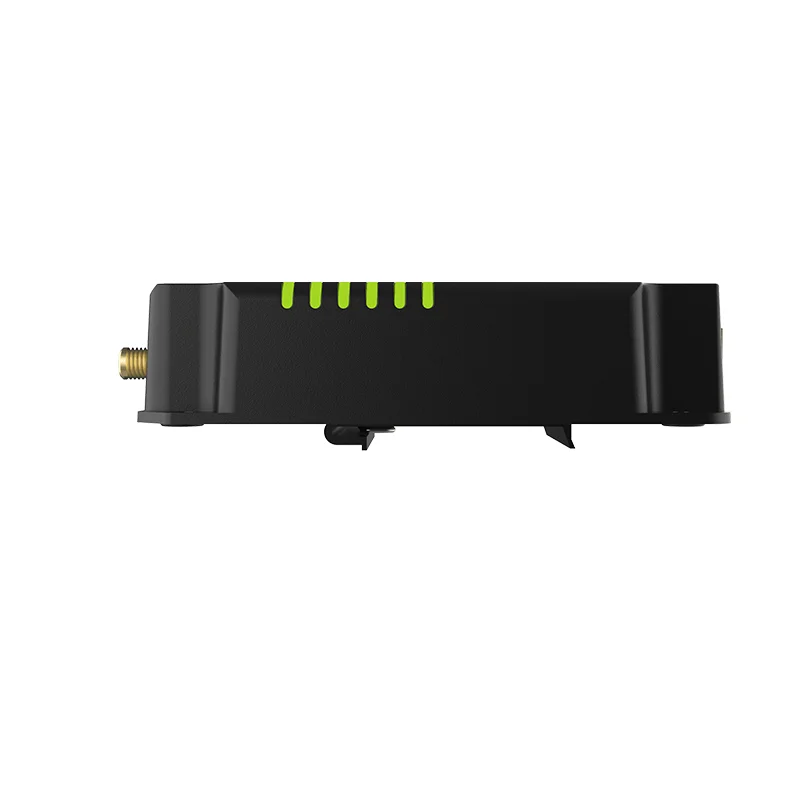

| LED Indicators | 1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength |
| Built-in | Watchdog, Timer |
| Software | |
| Network Protocols | IPV4/IPV6, PPP, PPPOE, SNMP v1/v2c/v3.,TCP, UDP, DHCP,RIPv1/v2,OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN,SSH,TR069, MQTT, MQTTS, etc. |
| VPN | DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE,WireGuard, MilesightVPN |
| Security | Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough |
| Management | Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub |
| AAA | Radius, Tacacs+, LDAP, Local Authentication |
| Multilevel Authority | Multiple Levels of User Authority |
| Reliability | VRRP, WAN Failover, Dual SIM Backup |
| Serial Port | Transparent(TCP Client/Server, UDP), Modbus Server/Client, Modbus Gateway (Modbus RTU to Modbus TCP) |
| Power Supply and Consumption | |
| Power Connector | 2-pin 5.08 mm Terminal Block |
| Input Voltage | 9-48 VDC, with Surge-Protection and Reverse Polarity Protection (48V is needed for PoE output) |
| Power Consumption | Typical 1.9 W, Max 2.4 W (In Non-PoE mode) |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 271 g |
| Dimension | 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) |

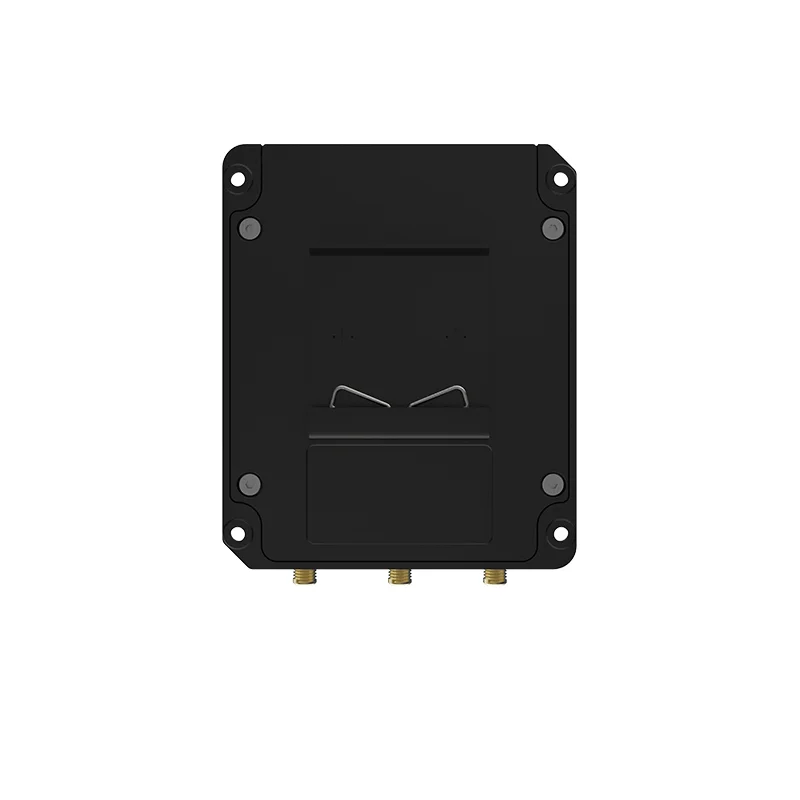

| Installation | Desktop, Wall or DIN Rail Mounting |
| Environmental | |
| Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
| Approvals | |
| Regulatory | CE, FCC, RCM, NBTC, SPDDI, JATE,Telec |
| Carrier | Verizon |
| Environmental | RoHS |
| EMC | EN 55032, EN 55035 |
| EMS | IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 2 IEC 61000-4-5 Level 2 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 1 IEC 61000-4-11 Level 3 |
| Radio Frequency | EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328 |
| Safety | EN62368-1 |
