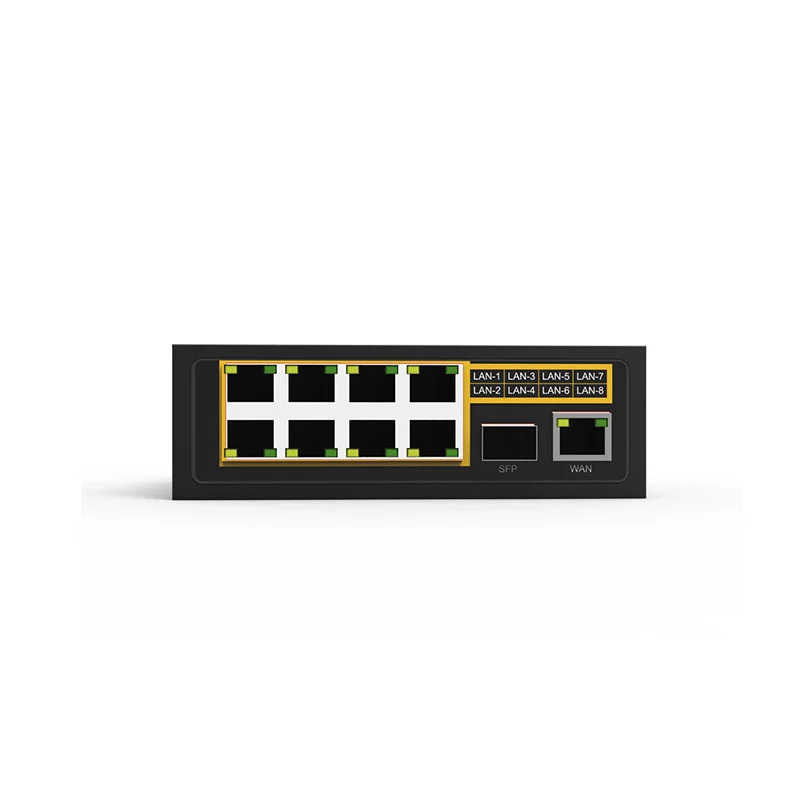

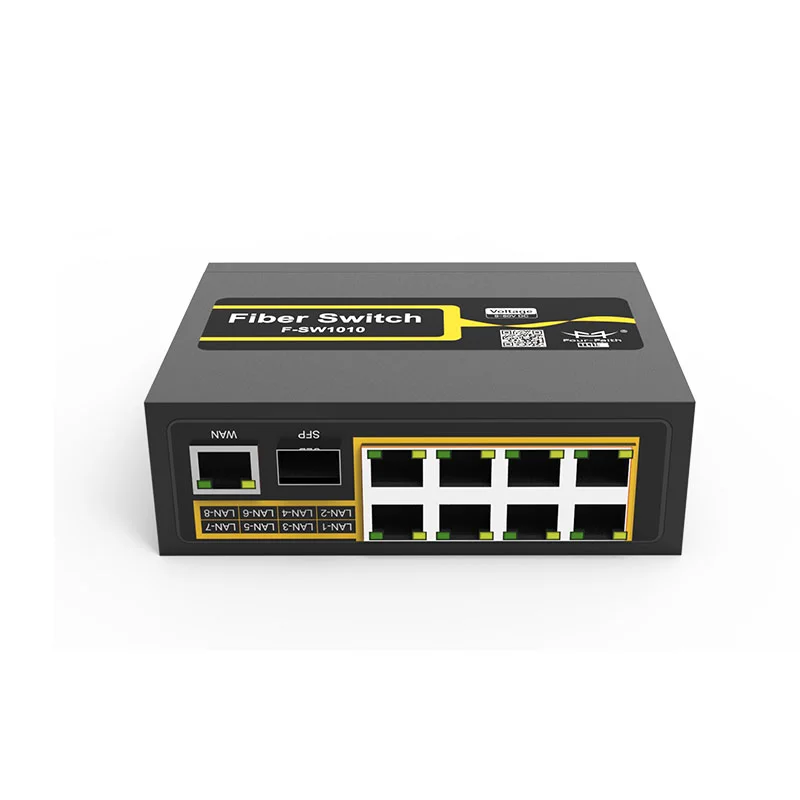

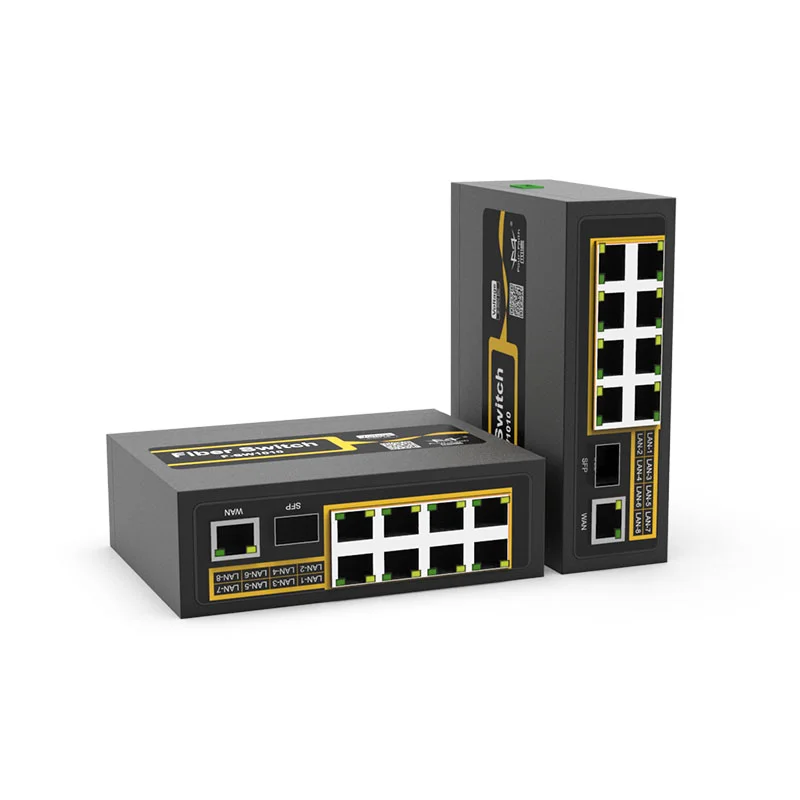

F-SW1010
Fiber Switch
- Outer shell: metal, IP30 waterproof and dust-proof protection
- Standard ports: 10 ports (including 8×10/100M Ethernet responsive ports and 1x1000M fiber optic port)
- Applied scenarios: M2M fields of the IoT industry, smart grids, industrial automation, etc.
- Other specifications: F-SW1010 has the capacity to connect multiple devices simultaneously for high-speed data transmission.
- Metal casing, IP40 protection level, suitable for most industrial control applications.
- Wide range operating temperature (-40ºC~75ºC)
- Wide range power input (DC 9~36V)
- Support IEEE 802.3/802.3U/802.3x flow control
- Support DIN-Rail mounting
- Support POE (Optional)
- High-speed forwarding ensure data transferred in real-time without blocked
- Power using terminal block interface with overload current and reverse polarity protection
Fiber Switch F-SW1010 Industrial Grade High Performance
10-Port Unmanaged Industrial PoE Ethernet Switch SPECIFICATION
| Transmission Distance | |||
| Ethernet Cable | 100m（Standard CAT5/CAT5e），250m（CAT6） | ||
| Fiber Support single/dual mode fiber, dual：550M；single：20/40/60/80/100KM | |||
| Characters | |||
| Application Level | 2 | ||
| Processing Type | Store-and-forward | ||
| Backplane Bandwidth | 3.6Gbps | ||
| Packet Forwarding Rate |
2.68Mpps | ||
| Mac Table Size | 2K | ||
| Power | |||
| Input Power DC9~36V, 40~60V (PoE Version) | |||
| Consumption | <5W, PoE Version<120W | ||
| Interface 5.08mmTerminal Block Interface，with Overload Current and Reverse Polarity Protection | |||
| Operating Environment | |||
| Operating Temperature |
-40℃~75℃ | ||
| Relative Humidity 0~90% (non-condensing) | |||
| Others | |||
| IP Rating IP40 | |||
| Weight | 520g / 610g (PoE Version) | ||
| Dimension | 134.8mmX115.7X45mm | ||
| Warranty | 5 Years | ||
| Standards | |||
| EMS | EN61000-4-2 Level 3 EN61000-4-3 Level 3 EN61000-4-4 Level 3 EN61000-4-5 Level 3 EN61000-4-6 Level 3 EN61000-4-8 Level 4 |
||
| Shock | IEC60068-2-27 | ||
| Freefall | IEC60068-2-32 | ||
| Vibration IEC60068-2-6 DIMENSIONS (mm) |
|||
